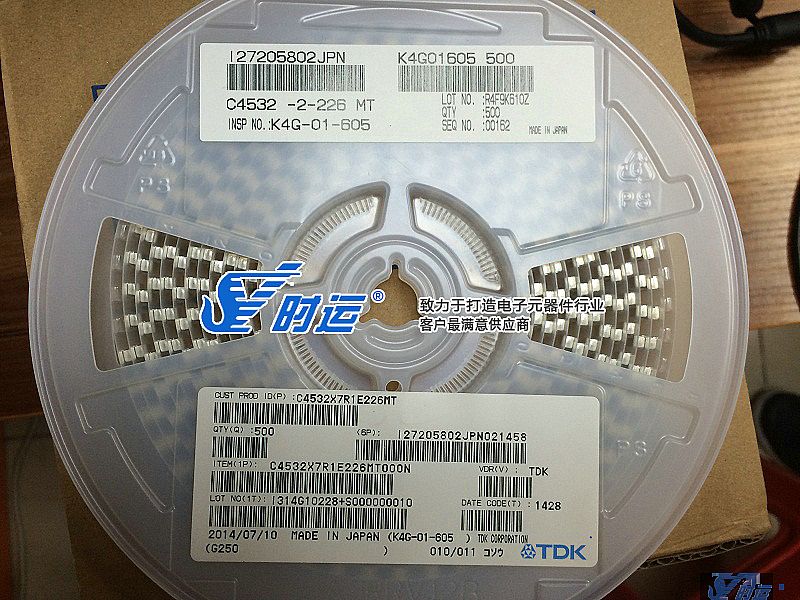

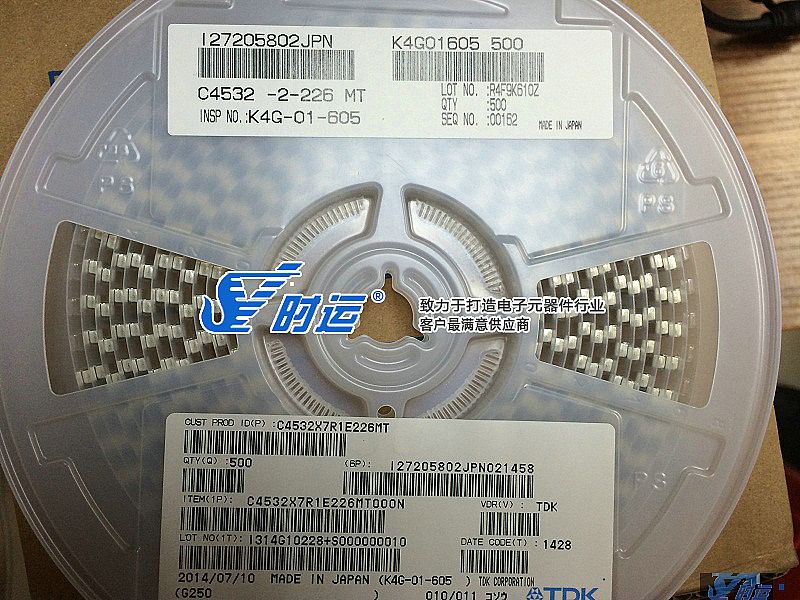

TDK贴片电容4532X7R1E226M

作者:蒋永久 发布时间:2014年11月14日 20:11 来源:时运电子
  • TDK贴片电容4532X7R1E226M



     产品规格

    尺寸代码 4532
    主体横宽(L) Min 4.1 m m
    主体横宽(L) Nom 4.5 m m
    主体横宽(L) Max 4.9 m m
    主体纵长(W) Min 2.8 m m
    主体纵长(W) Nom 3.2 m m
    主体纵长(W) Max 3.6 m m
    主体高度(T) Min 2.2 m m
    主体高度(T) Nom 2.5 m m
    主体高度(T) Max 2.8 m m
    端子宽度尺寸(B) Min 0.2 m m
    温度特性符号 X7R
    电容温度特性 Min -15 %
    Max 15 %
    使用温度范围 Min -55 Cel
    Max 125 Cel
    额定电压符号 1E
    额定电压 Max 25 V
    额定电压的分类 DC
    耐电压的分类 DC
    额定电容 Nom 22000000 p F
    电容容差符号 M
    电容容差(%) Min -20 % Max 20 %
    损失角正切 Max 3 %
    损失角正切测定频率 Nom 120 k Hz
    绝缘电阻 Min 22 M Ohm
    适用焊接方法 Reflow
    保存温度范围 Min 5 Cel Max 40 Cel
    概要/用途/特点

    概要 Smaller case size with high capacitance. It has no polarity. High reliability is guaranteed.
    用途 PC,DVD,DVC,PDP,LCD,HDD,xDSL,PDA
    特点 It has no polarity. High reliability is guaranteed.
    It can be adapted for various circuit such as transmission, amplification and feed through.
    包装信息

    包装形式 Bulk(Bag)
    最少包装数 Nom 1000 Pcs
    最少供货数 Nom 1000 Pcs
